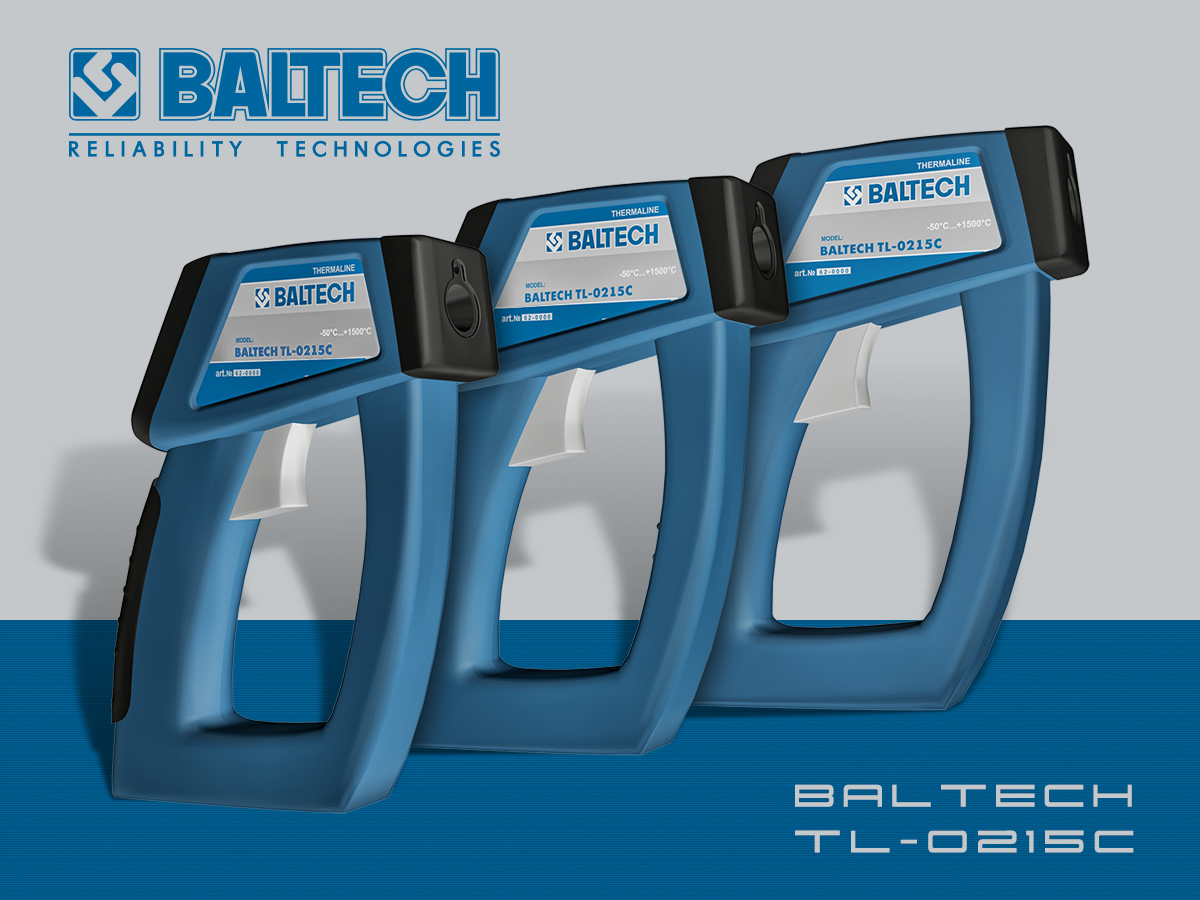

Manufacturers produce two types of pyrometers (thermometers): stationary and portable. Stationary pyrometers are usually used for temperature monitoring in process lines in the production. They always have contactless performance. Fixed a pyrometric system is unique in that they are designed and manufactured strictly according to customer’s specifications, so their cost is large. Portable pyrometers (thermometers) can be both contactless and contact (e.g. thermocouple).
Scope
Stationary device (portable devices) – electronic system for measuring temperature of object in a large industry where, in the foreground, high accuracy production lines. Such thermometers have large mass-dimensional characteristics and complex design of the entire monitoring system. Note that all stationary devices (virtually) intended for use in a specific production process:
- Industry;
- mechanical Engineering;
- Refining;
- Glass industry;
- the Manufacture of rubber products;
- Chemistry and other fields.
Stationary pyrometer is ideal for temperature measurement:
- Rolled on a mill;
- Melt metals;
- Blanks before pressing, forging and stamping;
- components during heat treatment;
- Materials (glass, ceramics, lime) and more.
the
Differences from portable devices
If a portable instrument is easy to use (it can use a regular specialist), stationary pyrometer is quite complex in this regard. To use this thermometer as a person who received specialized training. Most often, the stationary monitoring system is integrated into obsesivos network control system and controlled by responsible operators. Impressive dimensions and the complexity of the operation kompensiruet absolutely accurate and continuous online measurements available. Stationary pyrometric system of continuous monitoring help ensure maximum equipment reliability and minimise the number of emergency unscheduled failures. If the threshold temperature level is an automatic notification about the situation to all levels of professionals. The measurement error is stationary measuring devices are minimised. This is the main advantage of such thermometers before portable devices. According to the concept “reliability Technologies” – technologies Reliability experts serving stationary thermometers must be certified in the training center of excellence and training “BALTECH” at the rate of TOR-104.
Contact pyrometers are installed at the measurement point is stationary. There is a specific standard holes equipped with threads for fastening. Devices are constantly induced in the specifically defined area and perform a continuous measurement with a predetermined (for example, 3 measurements/second) speed. All received data is transferred to a recorder or to a port (com, USB) a personal computer protocols (RS-232, RS-485 or other).
Some models can be built-in display, others it may be absent. It all depends on the brand of measurement equipment and its manufacturer.
