BALTECH ThermaLine is a device that allows to measure temperature remotely .
Portable pyrometers BALTECH ThermaLine is an electric thermometer for measuring temperature opaque bodies on their thermal radiation in the optical range of the spectrum. All these pyrometers the ratio quality/price are the leaders of the Russian market. The purpose of portable thermometers is to measure the surface temperature of any object.
Galeria
the advantages of infrared THERMOMETER
the Main advantages of infrared pyrometer BALTECH TL is:
- Convenience and ease of use
- High accuracy of measurement 0.1°C
- high speed measurement 0.5 sec.
- Range of temperature measurement -50°C…+1500°C
- choice of units (°C, °F)
- data retention (memory)
- Alarm t min. or t max.
- High rate-of-sight 50:1
- the Presence of a laser target designator
- high-Quality germanium optics
- Ergonomic design
- Convenient carrying case
Warranty period
our customers
Special price
PACKAGE contents
Types of pyrometers BALTECH TL
Device and types of pyrometers BALTECH TL (optional):

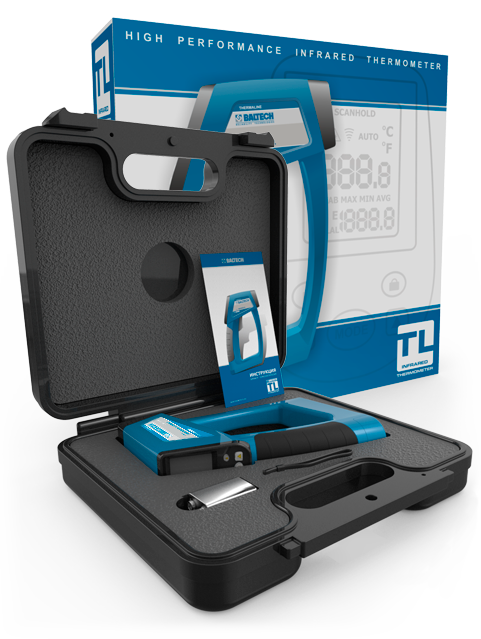

Equipment thermometer:
- Sensor pyrometer laser
- hand Strap
- carrying case
- 9V Battery, type 006P (installed in device)
- user Manual in Russian
- Brand packing box
Branded packaging pyrometers BALTECH TL replace for you a short guide eksplatatsii.
In addition to the pyrometer, You can order:
- Dark tape
- Points for observation of the marker
- Charger
- Batteries
- pyrometric examination
- Warranty card for 2 or 3 years
- replace the old thermometer with a discount
TECHNICAL SPECIFICATIONS
BALTECH ThermaLine used in energy, petrochemical,
construction, transport, metallurgy, machinery, utilities, etc.
| Model laser thermometer -50 …+800 -50 …+1000 -50 …+1500 |
BALTECH TL-0208С BALTECH TL-0212С BALTECH TL-0215С |
| the maximum permissible basic error, % – Temperature range -50… -20°C – Temperature range -20… +100°C – In the temperature range +100… +800°C |
±3.0 ±2.0 ±2.0 |
| Time, sec | 0.5 |
| Repeatability of readings, °C | ±1.0 |
| Resolution, °C | 0.1 |
| Index of sight | 50:1 |
| supply Voltage | 9 |
| working temperature Range, °C | 0÷50 |
| relative humidity, % | 10÷90 |
| Auto power off | Is,~ 6сек. |
| Laser designator | Is, disable |
| display Backlight | |
| Storage measurements | Yes, 10 points |
| Measurement maximum, minimum, average and difference temperature | |
| warning Sound when the preset temperature | |
| Display of set and current temperature | |
| dimensions, mm | 200x127x47 |
| Weight, C. | ~ 330 |
VIDEOS
BALTECH TL is used when an inspection is carried out the temperature of the object in a contactless manner.
It is recommended that the test temperature industrial sites were carried out using the infrared thermometer BALTECH TL-0215C.
